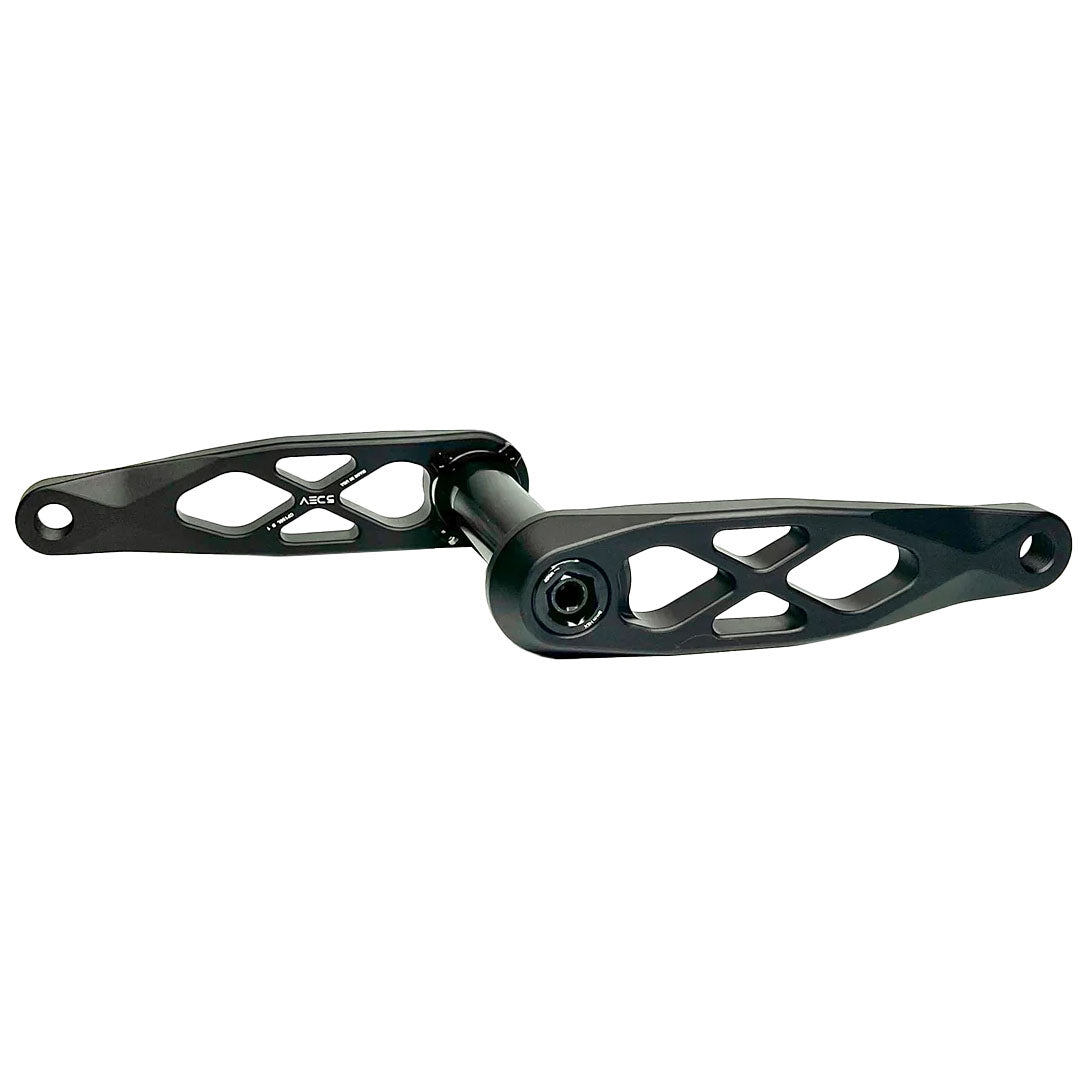

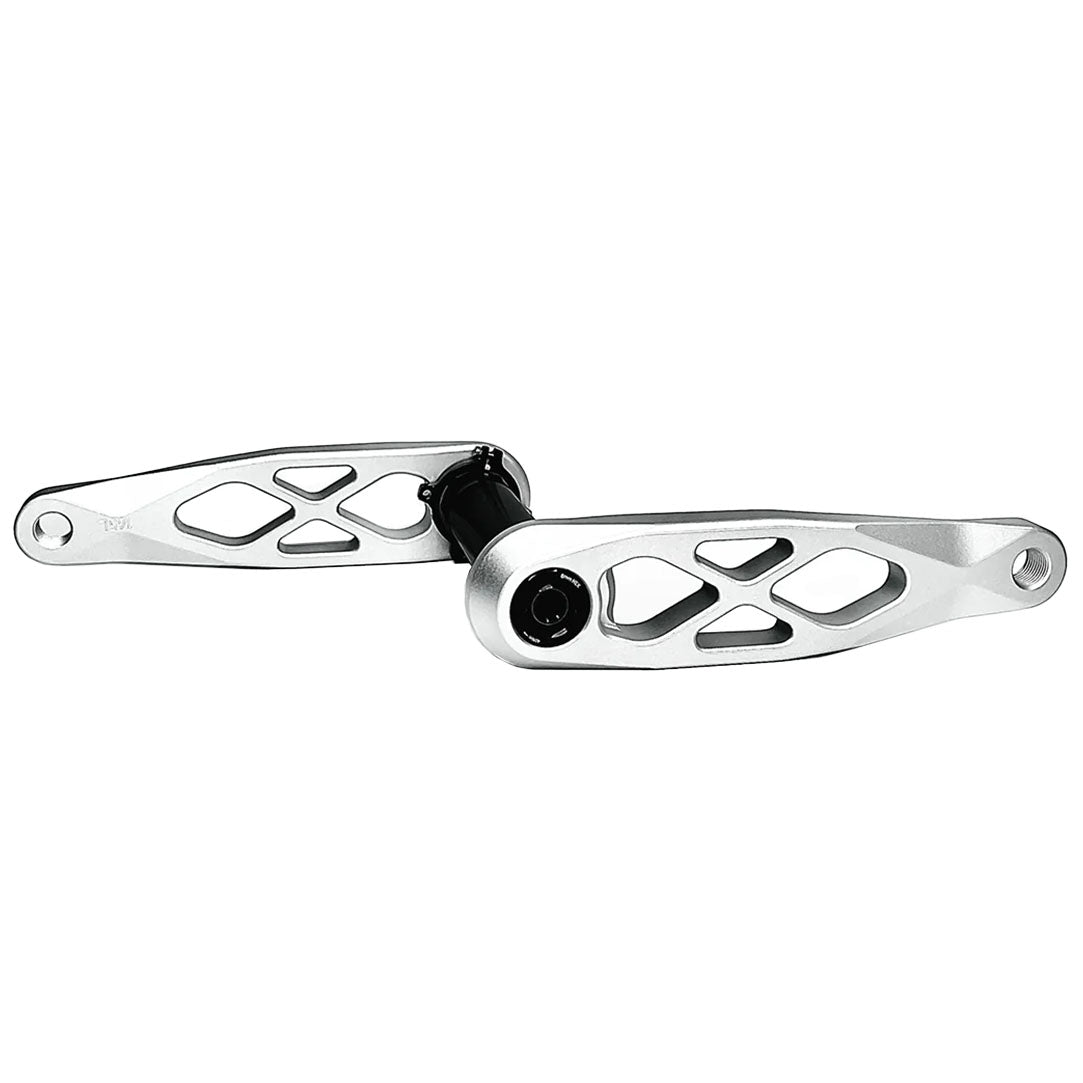

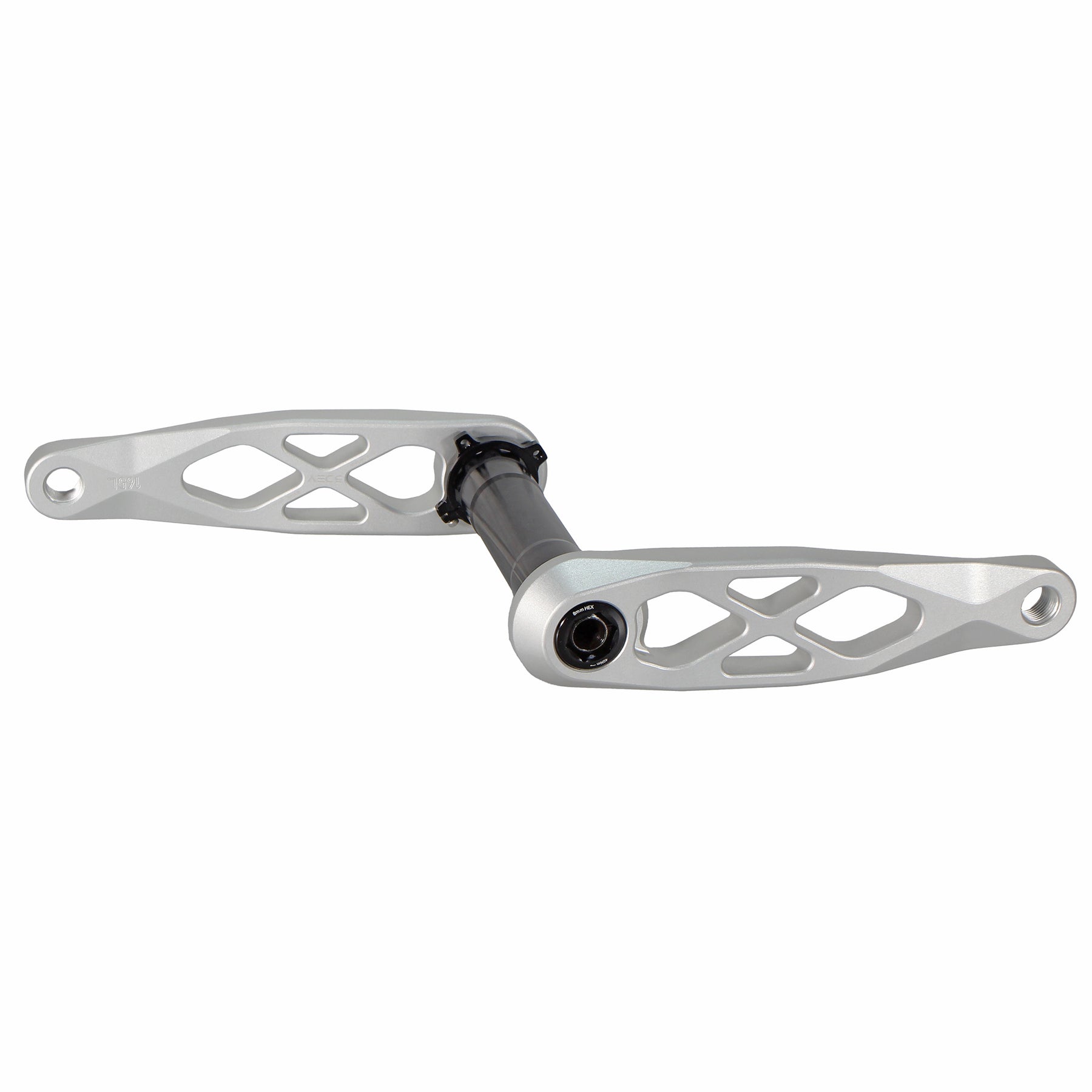

These meticulously crafted cranks come with a lineup of impressive details, including Q factor options for both Boost and SuperBoost, compatibility with various bottom bracket widths, and your choice of spindle diameters. You can also select the ideal length for your riding style, ranging from 155mm to 170mm. Crafted from high-quality 7050 Billet Aluminum and featuring robust Chromoly Steel crank bolts, these cranks are built to endure. With self-extracting hardware and a CNC'd 7075 Alloy preloader, they offer both convenience and precision. The 5DEV R-SPEC cranks seamlessly accommodate SRAM 3-Bolt Direct Mount Chainring Interfaces. They're optimized for performance without unnecessary bulk at a lightweight 610g (for the 165mm length with a 29mm spindle). Rest assured with a 5-year warranty, and discover the ultimate in crank innovation, proudly made in San Diego, California.
|167mm Boost | 176 SuperBoost+
|Bottom Bracket Width:
|68 - 73mm for Boost | SuperBoost Available in Select Sizes
|30mm and 29mm (Need help determining what spindle size? CLICK HERE)
|155mm, 160mm, 165mm, 170mm
|7050 Billet Aluminum
|CNC'd 7075 Alloy
|Compatible with SRAM 3-Bolt Direct Mount Chainring Interface
|610g (165mm length 29mm spindle)
5DEV Offers Standard Boost Cranks 68/73mm BB with 2 Spindle Sizes and SuperBoost+ Spindles for select crank lengths.
- SRAM DUB 29mm (28.99mm) If you have SRAM Cranks on your bike, you need the 29mm spindle option.
- 30mm Spindle for 30mm Bottom Brackets. 30mm is a standard bearing size, and most aftermarket BB’s use this size. CaneCreek, Chris King, EuroBearing, Kogel etc. If you have an aftermarket BB. It’s probably 30mm.
- Shimano: If you have Shimano Cranks, you have a 24mm BB from Shimano. You must determine if your BB is a Press Fit or a BSA Style (Threaded). Then you will need to replace your BB with either a SRAM DUB or an Aftermarket Brand with 30mm Bearings.
- If you have SuperBoost+ the same applies. Determine if you have SRAM or 30mm BB.
