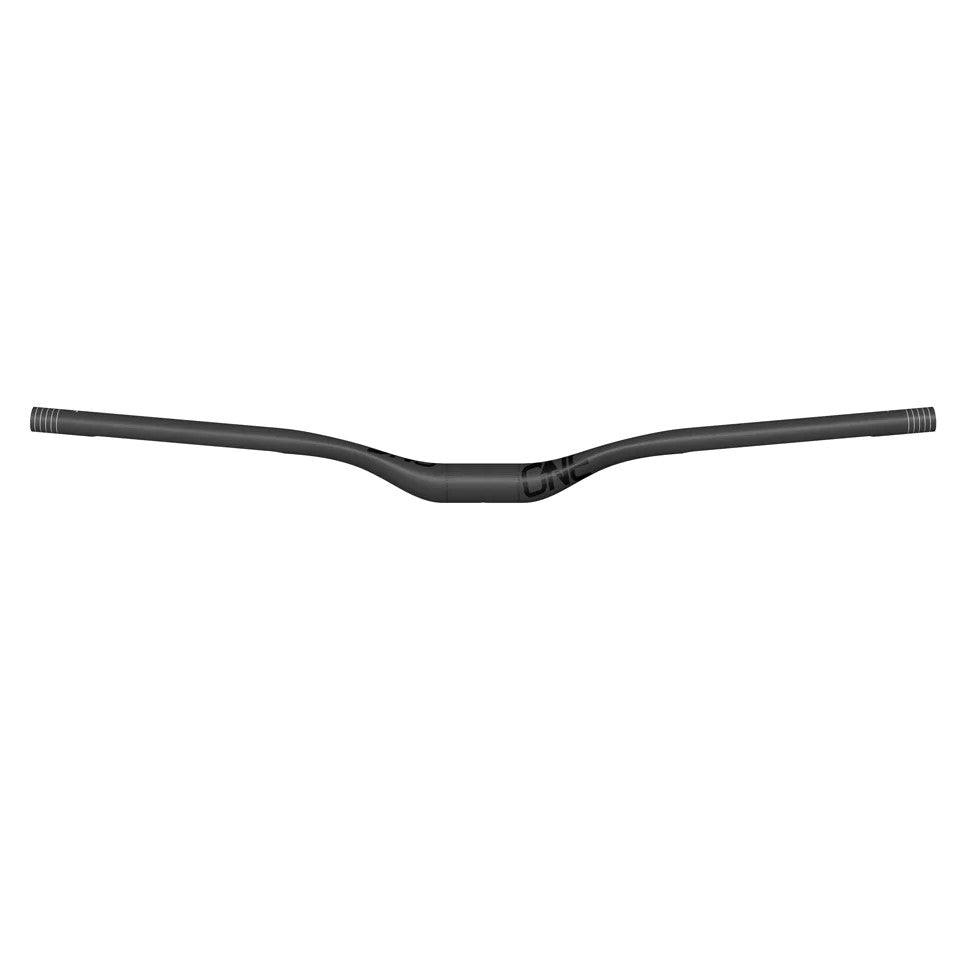

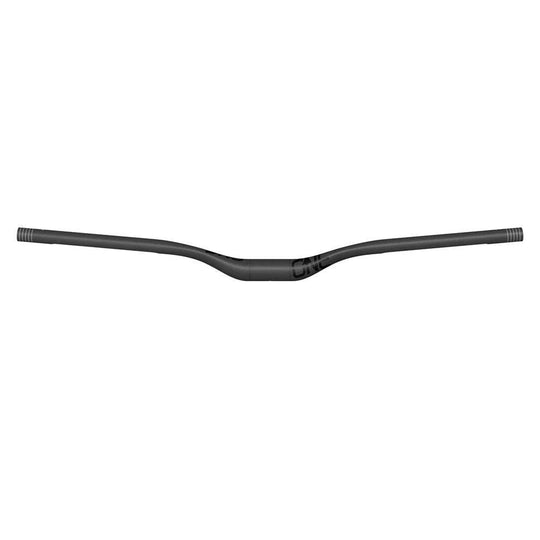

Experience the Most Comfortable E-Bike Handlebar on the Market with the OneUp Carbon E-Bar. With 20% more compliance than other carbon handlebars, enjoy a fatigue-free ride for longer distances.
The patented oval design ensures a comfortable grip while preserving steering control and strength. The handlebar is equipped with integrated ports for E-Bike controls and has internal routing for Shimano STEPS switch units and Bosch LED Remote.
It also meets the stringent Zedler E-MTB Advanced Plus standard and the international DH standard (ASTM Cat. 5 Downhill). Engineered for a smooth and enjoyable ride.

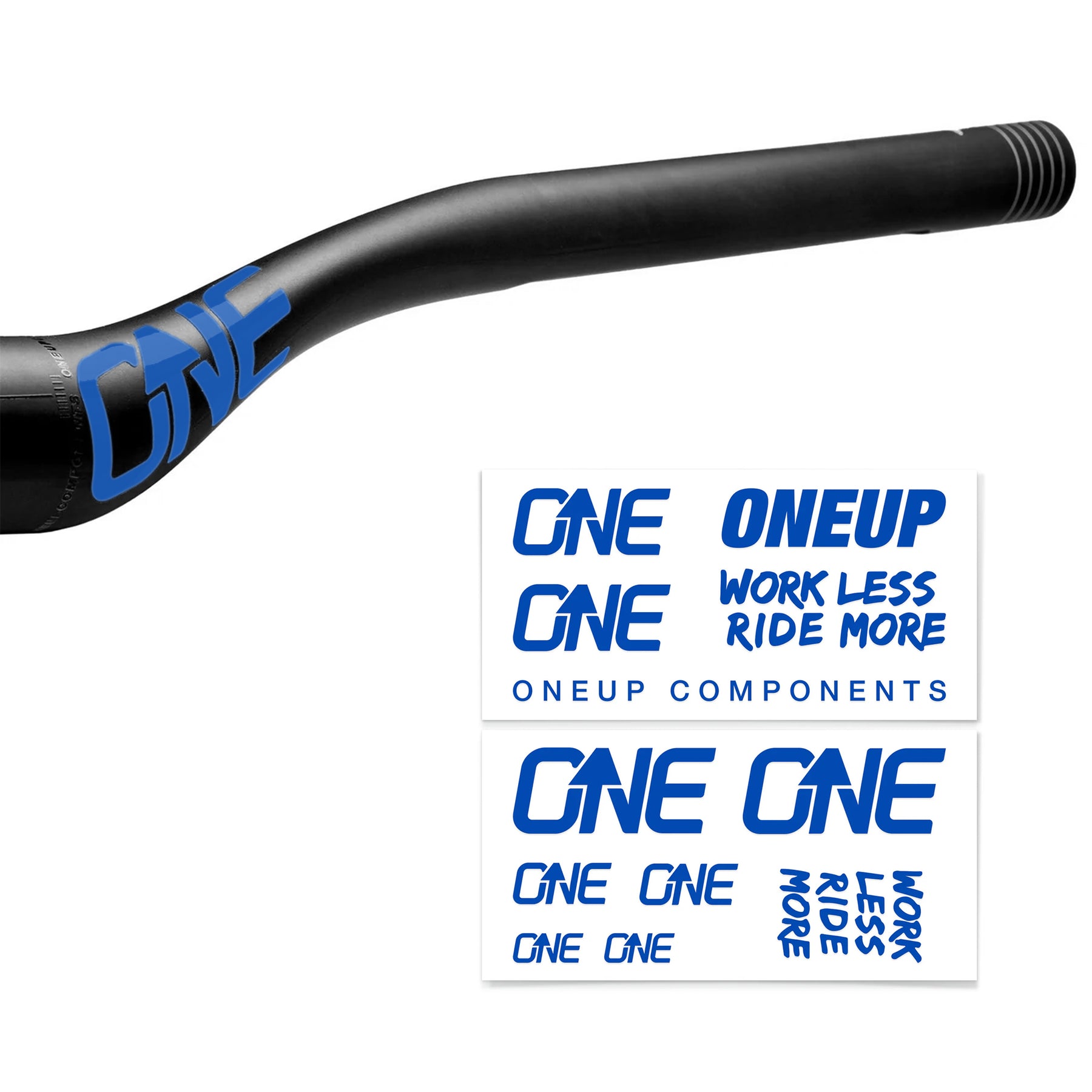

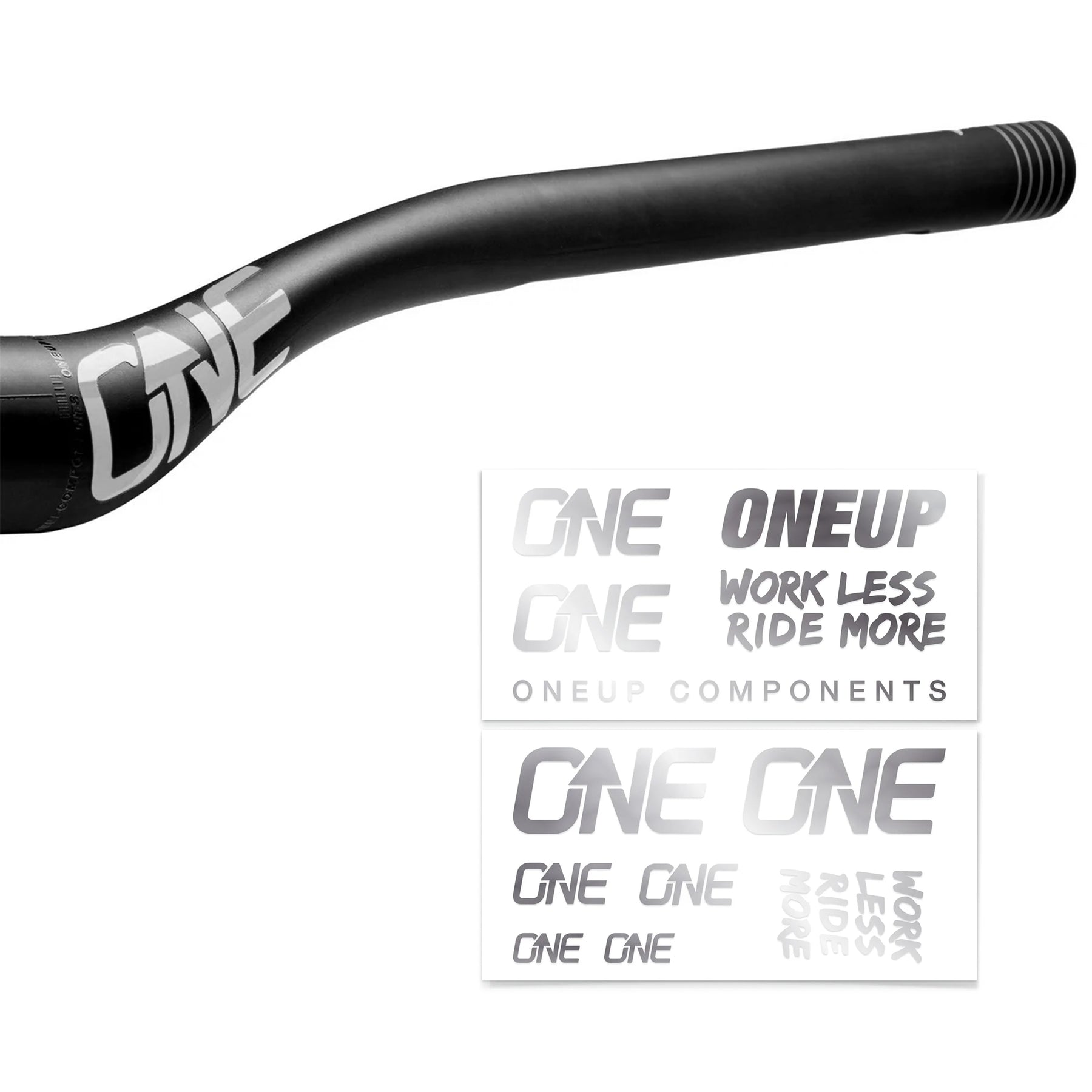

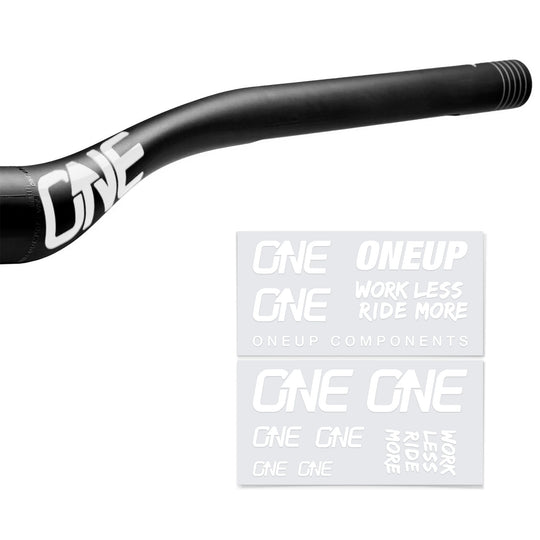

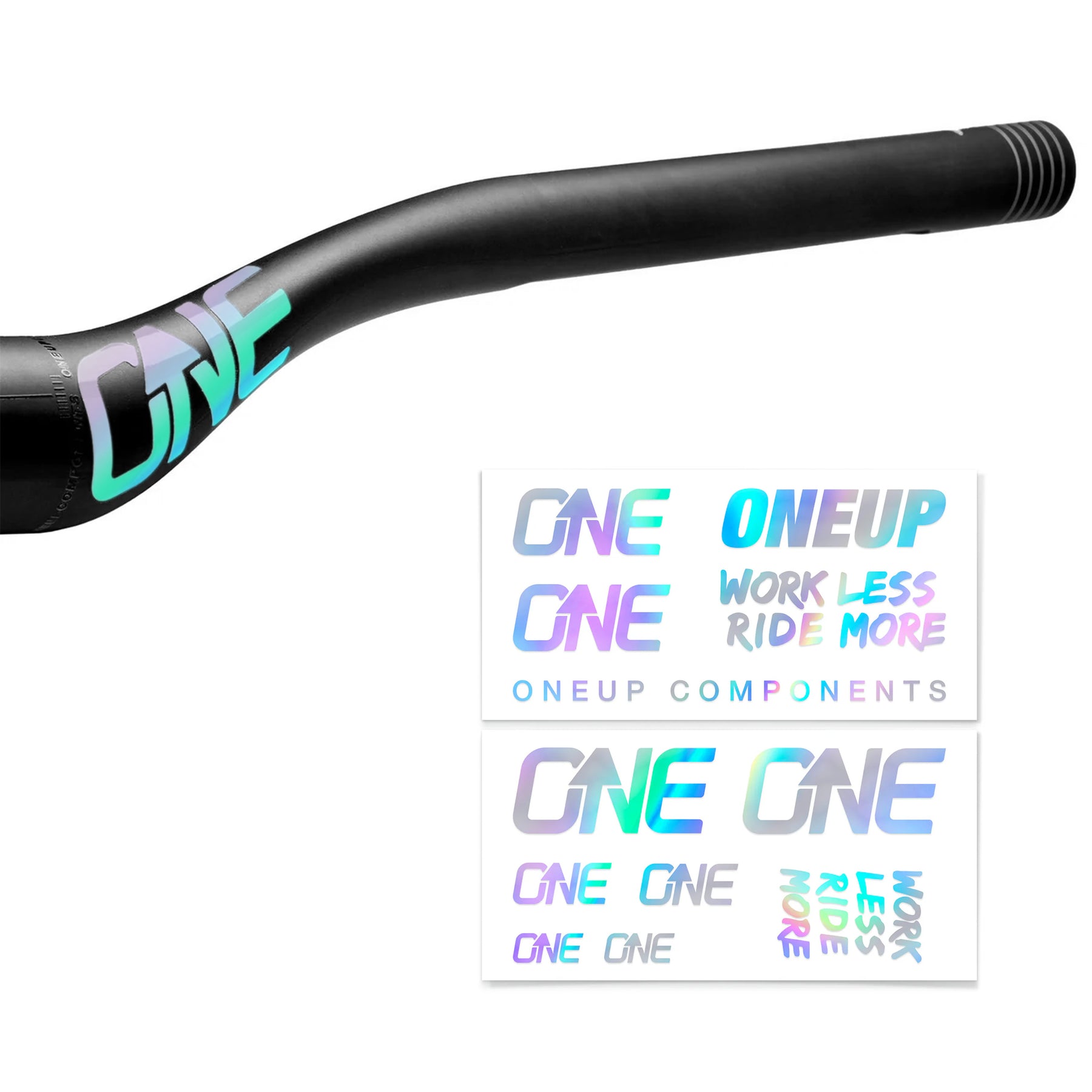

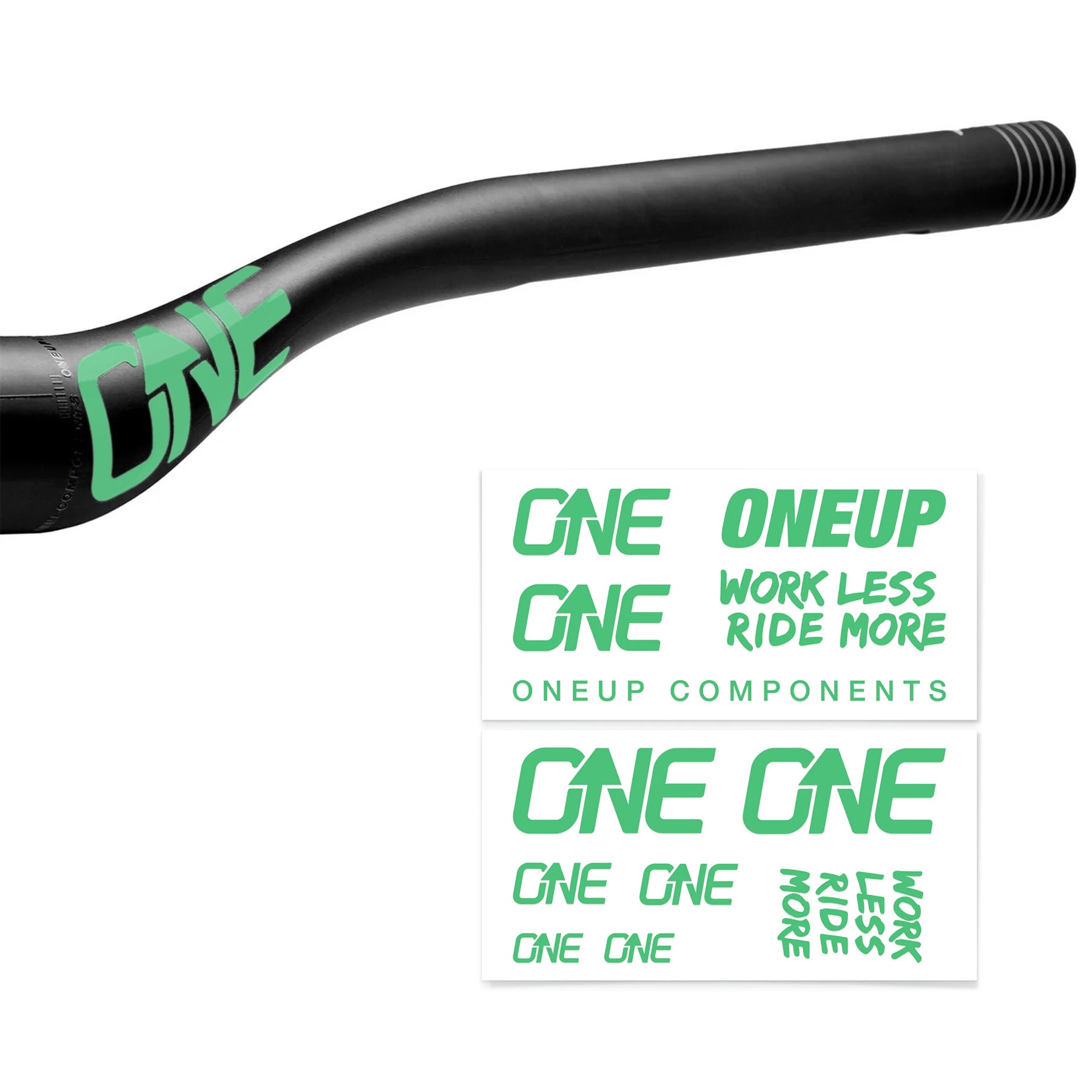

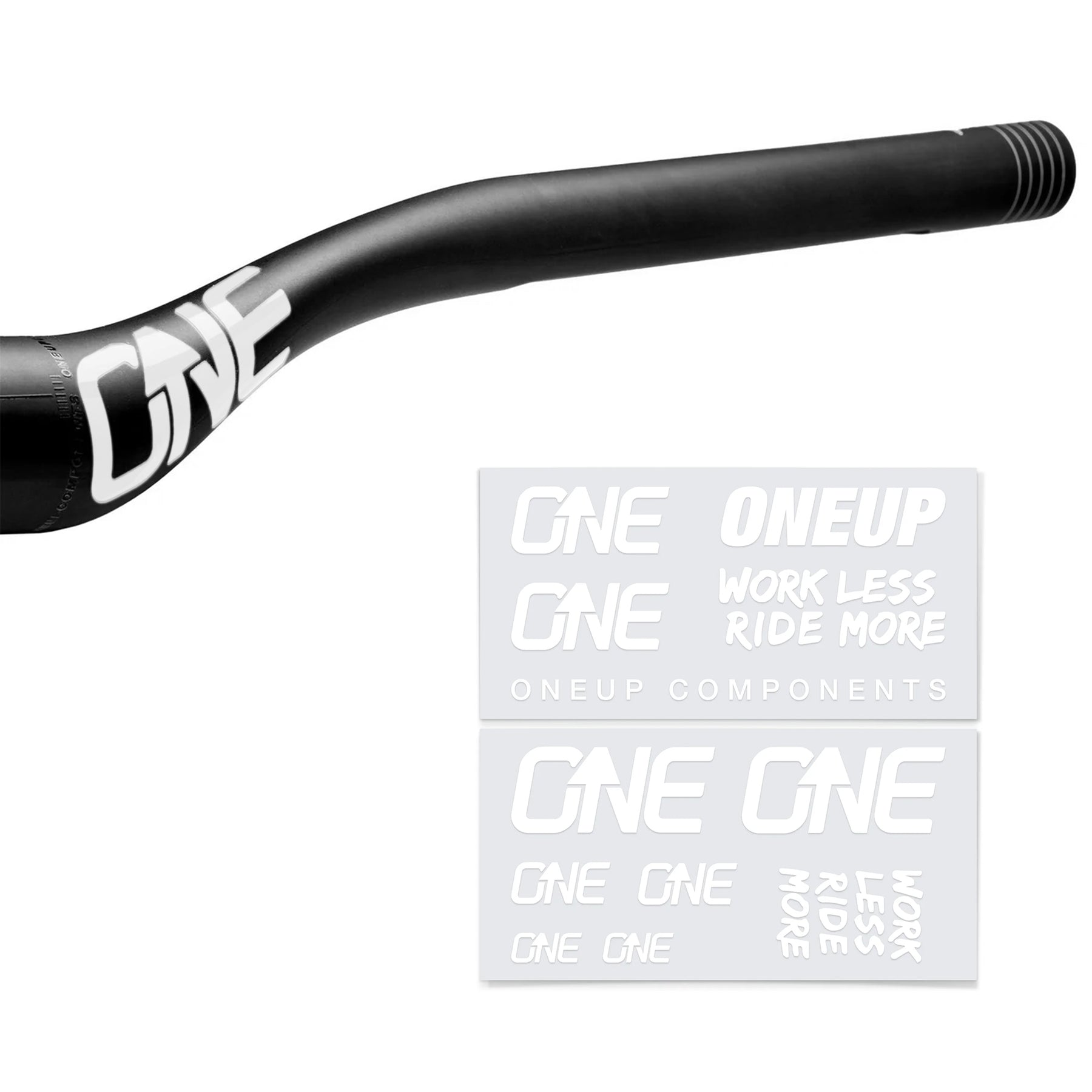

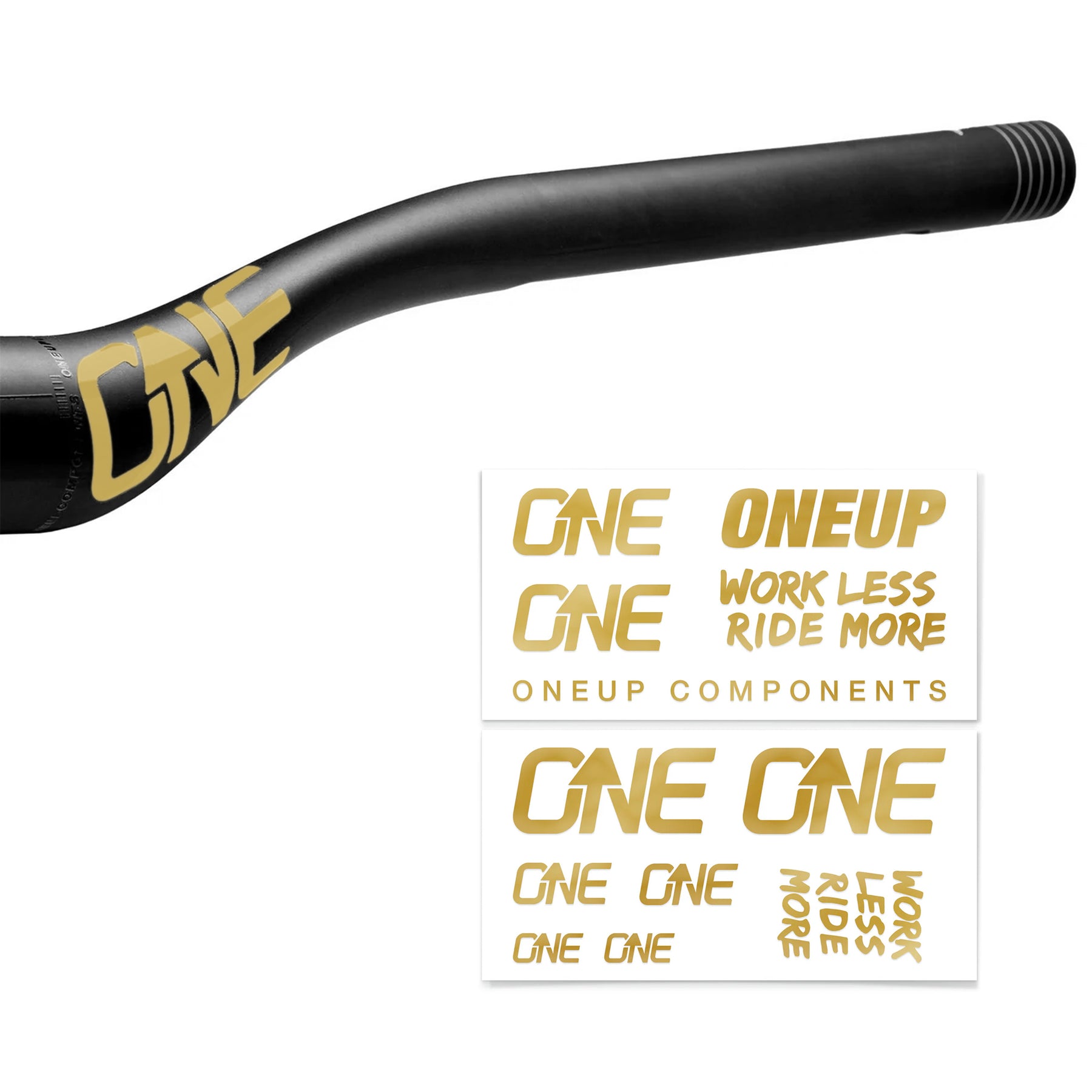

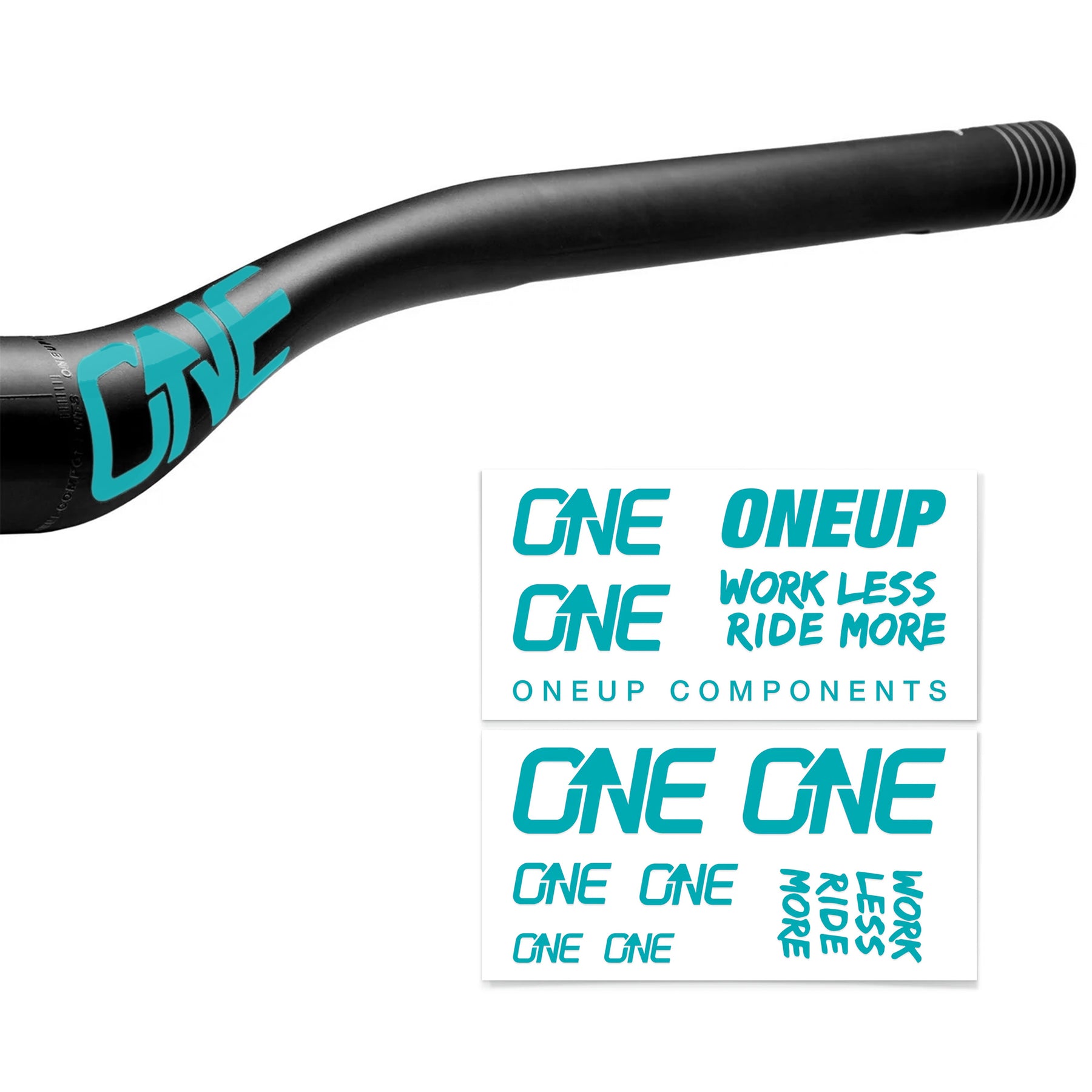

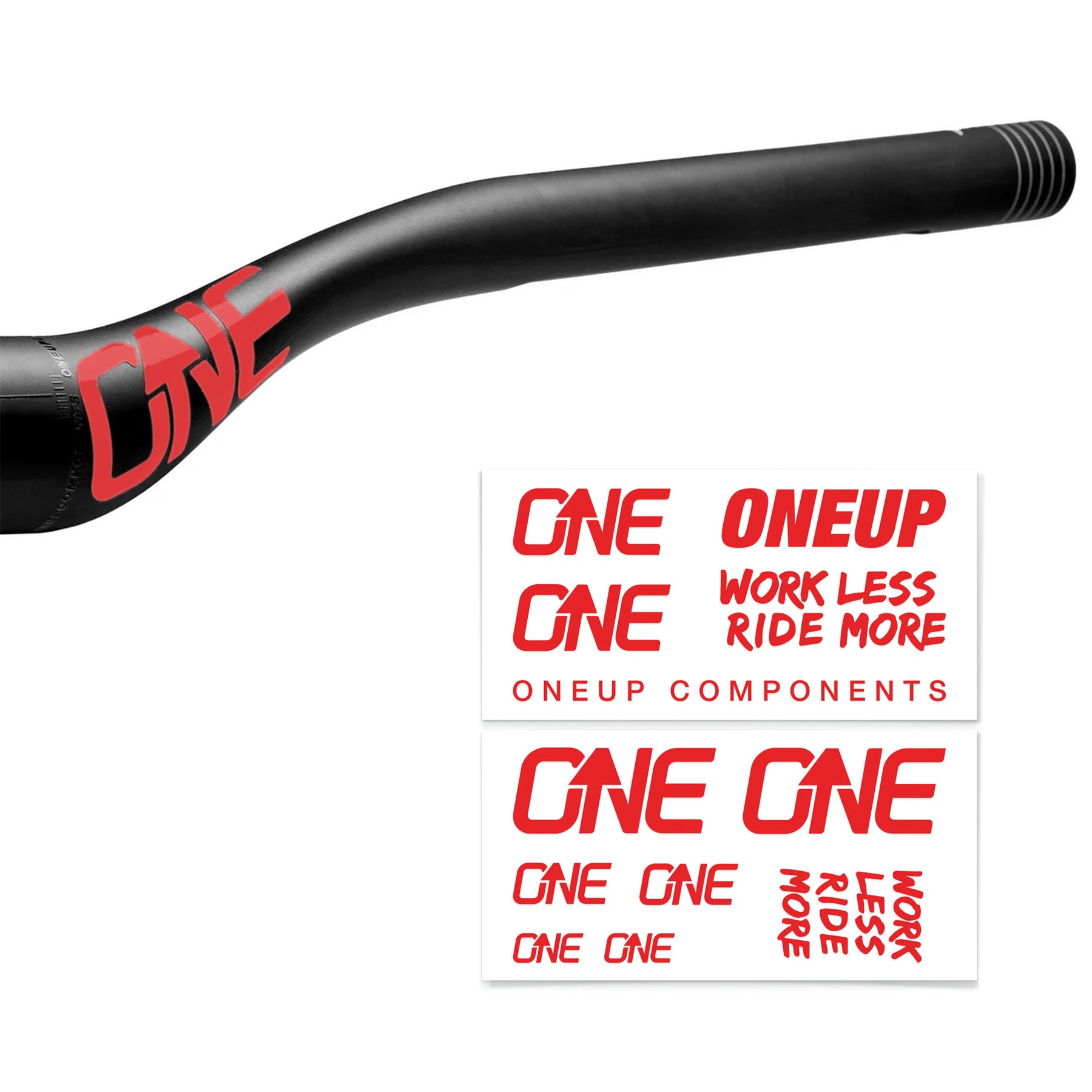

Colored options include the E-bike black handlebar along with a separate decal kit. Decals are not pre-applied. The all-black handlebar version does not come with any decals.
Details
| Geometry: | 800mm Wide / 35mm Dia. / 35mm Rise / Sweep 8° Back 5° Up |
| Weight: | 238g |
| Stealth Routing: | Wire ports & grooves for controller |
| Max Stem Clamp Width: | 65mm |
| Max Stem Clamp Torque: | 6Nm |
| Max Lever Clamp Torque: | 5Nm |
| Minimum Trim Width: | 740mm |
| Color: | Black |
| Decal Kits: | Red, Green, Blue, Orange, Gold, Matte Bronze, Black, Purple, Oil Slick & White |
Compatibility
The OneUp E-Bar features internal routing for Shimano STEPS switch units, Bosch LED Remote, and all other switch units with a connector diameter of less than 6.5mm.
The wire port diameter in the bar is 6.5mm and the minimum switch wire length required to internally route is 650mm.
Specialized, Bosch Purion or Rocky Mountain remote power mode controllers cannot be internally routed through the Carbon E-Bar.
If you have a switch with a removable wire (EP8, E8000, E7000) you can install a 650mm or longer Shimano EW-SD50 (1st gen EP8, E8000 & current E7000) wire or the EW-SD300 (2nd Gen EP8 & E8000) wire.
The Orbea Rise does not have a handlebar-mounted display unit as it connects to your smartphone. It has the EW-EN100 junction and removable EW-SD50 wire.
If you don’t have a removable wire on your switch, you need to buy a new switch with a removable wire (SW-E7000-L) with a wire length of at least 700mm.
Or you you can add the EW-JC200 2 port junction and an EW-SD50 extension wire
